ST35 Series II

Make	Wacker Neuson
Model	ST35 Series II

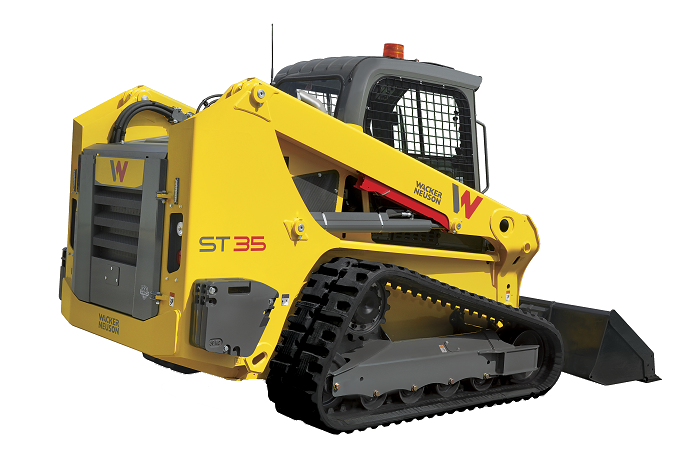

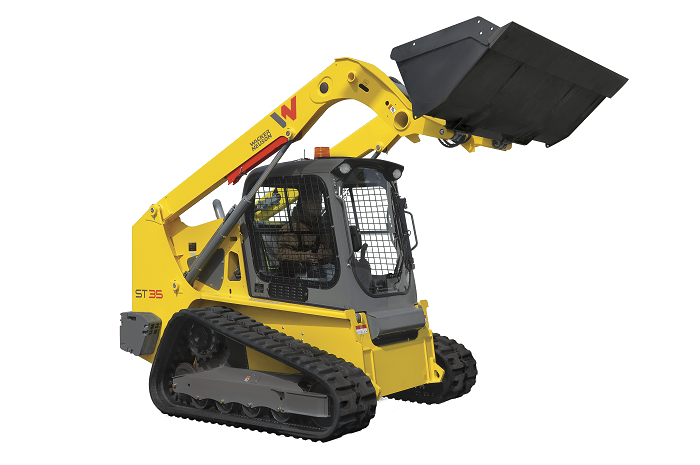

The ST35 radial lift track loader delivers power and maneuverability. This machine delivers 3,500 pounds of rated operating capacity at 50% and a lift height up to 126.8 inches. The ST35 is powered by a 74.3 hp turbo-charged Kohler Tier 4 Final engine. Available with EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls, the machines can fit the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue and increasing productivity.

Standard two-speed transmission increases travel time on job sites giving the operator more time throughout the day to get more tasks completed.
Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.

Operating data
Height top of ROPS	83.2 in
Overall length w/ bucket	145.4 in
Overall length w/o bucket	117.5 in
Height Hinge Pin Max	126.8 in
Operating weight	9,879 lb
Rated Operating Capacity ROC 50%	3,500 lb
Rated Operating Capacity ROC 35%	2,450 lb
Length of track on ground	63 in
Dump height max. at max height	99.8 in
Angle of departure	27 °
Tipping angle (bucket dump) w/ bucket at max height	44 °
Ground clearance	9 in
Breakout force max. – Bucket	6,941 lbf
Breakout force max. – Boom	7,500 lbf
Bucket width	78 in
Width w/o bucket	76 in
Width Track	17.7 in
Engine / Motor
Engine / Motor	Kohler KDI 3404TCR
Engine performance	74 hp
Displacement	205 in³
RPM / speed	2,500 rpm
Battery	950 CCA
Fuel tank capacity	40 US gal
Hydraulic system
Auxiliary Hydraulics- Standard Flow	22.1 US gpm
Auxiliary Hydraulics- High Flow	31.7 US gpm
Pressure aux. relief	3,480 psi
Power transmission
Travel speed low	6.4 mph
Travel speed high	9.6 mph

ST35 Series II Model variations

1000382877

Base ST35

Open ROPS canopy, mechanical coupler, ISO controls, Tier 4 Final engine
1000382877

Package SP416E

Standard Features Plus: Foot Throttle, Hydraulic Coupler, Hydraulic Bucket Leveling, Ride Control
1000382877

Package SP417E

Standard Features Plus: Enclosed Cab with A/C, Foot Throttle, Hydraulic Coupler, Hydraulic Bucket Leveling, Ride Control
